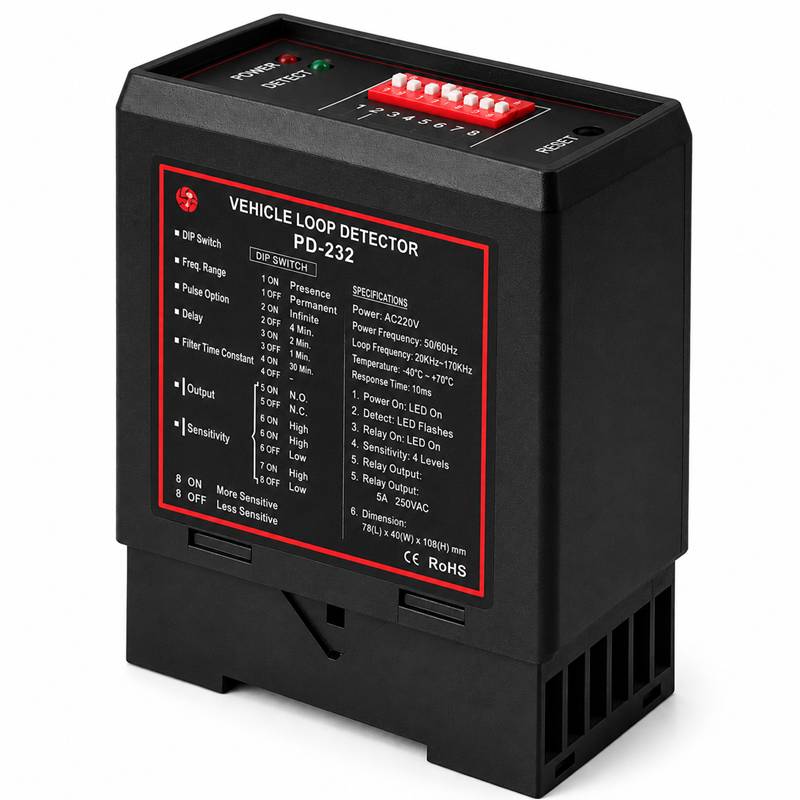

PD-232 Dual Loop Vehicle Detector for Gate Barrier UAE

Dual Channel Inductive Vehicle Loop Detector for Automatic Gates & Parking Barriers

The PD-232 Dual Loop Vehicle Detector is a professional two-channel inductive vehicle detection system designed for automatic gate openers, parking barriers, traffic management systems and vehicle access control applications throughout the UAE.

Using advanced inductive loop technology, the PD-232 accurately detects vehicle presence by monitoring changes in loop inductance. The dual-loop design allows management of two independent detection loops, making it ideal for entry and exit lanes, parking facilities and high-traffic vehicle access systems.

The detector provides stable operation, adjustable sensitivity levels and reliable performance in residential, commercial and industrial environments. When connected to loop cables installed beneath the road surface, the system automatically detects approaching or stationary vehicles and activates connected automation equipment.

Designed for professional installations, the PD-232 offers wide frequency adjustment, long loop cable support and dependable vehicle detection performance.

PD-232 Vehicle Loop Detector Features

• Dual channel vehicle loop detector
• Supports two independent loops
• Suitable for gate barriers and automatic gates
• Reliable vehicle presence detection
• Adjustable sensitivity settings
• Wide frequency adjustment range
• Fast and accurate vehicle recognition
• Supports long loop cable installations
• Industrial-grade performance
• Compact DIN rail design
• Easy installation and programming
• Stable operation in demanding environments

Technical Specifications

• Model: PD-232
• Product Type: Dual Loop Vehicle Detector
• Detection Technology: Inductive Loop Detection
• Supply Voltage: 230V AC
• Loop Quantity: 2 Loops
• Sensitivity Levels: 4 Adjustable Levels
• Sensitivity Options: High, Medium High, Medium, Low
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Frequency Range: 20 KHz to 170 KHz
• Reaction Time: 100 ms
• Recommended Loop Inductance: 80μH to 300μH
• Maximum Loop Cable Length: 200 Meters
• Recommended Loop Connection: Less than 5 Meters
• Dimensions: 78 x 40 x 108 mm
• Net Weight: 350 g

Loop Installation Requirements

• Install detector in a weatherproof enclosure
• Position close to the loop connection point
• Keep away from heat sources
• Maintain minimum 10mm spacing from adjacent devices
• Use twisted loop lead cable
• Minimum 20 twists per meter recommended
• Ensure correct loop shape and inductance values
• Follow standard loop installation procedures

Applications

• Parking gate barriers
• Automatic sliding gates
• Automatic swing gates
• Industrial access control systems
• Commercial parking facilities
• Warehouse entrances
• Factory vehicle access points
• Traffic management systems
• Toll collection systems
• Vehicle detection automation

Benefits of Dual Loop Detection

• Supports entry and exit lane monitoring
• Improves traffic flow management
• Accurate vehicle detection
• Reduces false triggering
• Supports multiple automation devices
• Ideal for high-traffic locations
• Reliable operation in commercial facilities
• Enhanced access control performance

Package Includes

• 1 x PD-232 Dual Loop Vehicle Detector
• User Manual

Why Choose PD-232 Vehicle Loop Detector in UAE?

The PD-232 dual loop detector delivers reliable vehicle detection, adjustable sensitivity and professional access control performance for parking barriers and automatic gate systems. Its dual-channel design makes it ideal for commercial, industrial and residential projects across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
