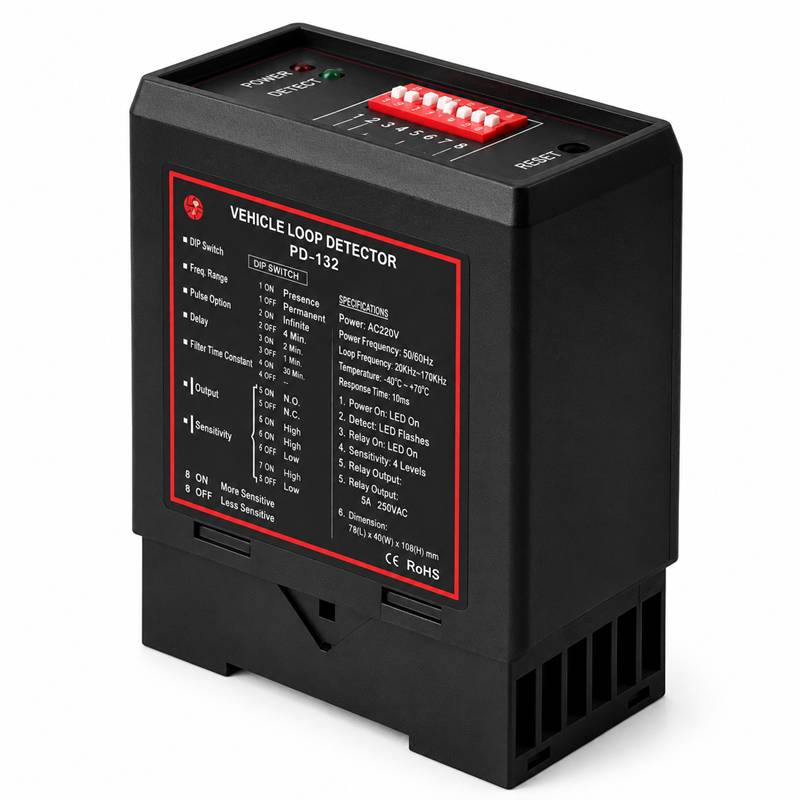

PD-132 Vehicle Loop Detector for Gate Barrier
- Vehicle Loop Detector for gate
- Model No : PD-132
- PD-132 Inductive Vehicle Single Loop Detector
- for Automatic Gate opener barrier gate Traffic Inductive Vehicle access
- The detector must be installed in a convenient weatherproof location as close to the loop as possible.
- Installation location must choose to stay away from the heat source,
- it around other devices must maintain a distance of at least 10mm (mustn’t fix cling to the cabinet).
- A correct loop configuration and detector installation
- will ensure a successful inductive loop detection system.
- Loop of several important parameters include: loop figure, size,
- and turns, install methods (details as Loop installation guide
Specifications:
- Supply voltage : 230V AC
- Voltage tolerance AC : +10%/-15%
- Voltage tolerance DC : ±15%
- Power Consumption : 4.5VA
- Output relays : 240V/5A
- Operating temperature : -20℃ ~ 65℃
- Storage temperature : -40℃ ~ 85℃
- Frequency range : 20 KHz ~ 170 KHz
- Reaction time : 10ms
- Signal holding time : Unlimited / limited when loop is permanently covered 10 minutes
- Sensitivity : Adjustable in 4 increments
- Loop inductance : Total loop plus connection wiring: 50μH to 1000μH. Ideal is 100μH to 300μH
- Loop connection wiring : Maximum length 20 meters, twisted at least 20 times per meter
- Size of Housing : L78 x W40 x H108mm
