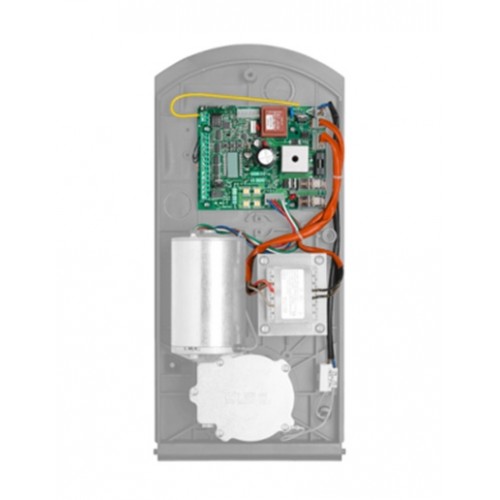

BENINCA CP J4ESA Garage Motor Control Board in UAE

BENINCA CP J4ESA Garage Motor Control Board:

TECHNICAL DATA:

• Power supply 230 Vac (50-60Hz)
• Motor supply 24 Vdc
• Max absorbed current 0.7 A
• Thrust 600 N
• Opening speed 8.9 m/min
• Duty cycle intensive use
• Protection level IP40
• Built-in control unit
• Integrated receiver
• Encoder
• Limit switch electronic with encoder
• Operating temperature -20°C /+50°C
• Door surface area 11 ㎡/max
• Weight 4.8 kg
• CP.J4ESA

• APPLICATION
• 1 actuator series JM.3ESA, JM.4ESA
• 230 Vac – 50/60 Hz

• MOTORS POWER SUPPLY
• 24 Vdc / 8.5 A
• Integrated LCD display

• Integrated 433.92 MHz 64-code radio receiver with 3 encoding systems
