BENINCA JM.4ESA Garage Door Opener 1200N UAE
Price 2,000 AEDIn Stock

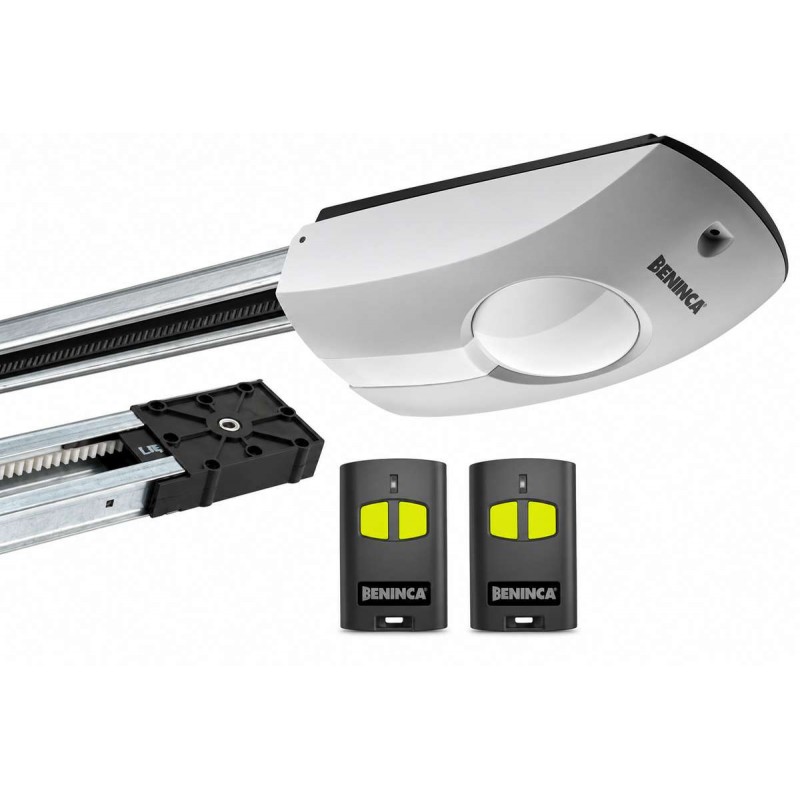

BENINCA JM.4ESA Automatic Garage Door Opener UAE
The BENINCA JM.4ESA Garage Door Opener is a powerful 24V automatic garage door motor designed for commercial sectional doors with a surface area of up to 22 m². With a maximum thrust of 1200 N, the JM.4ESA provides reliable and precise automation for larger garage and sectional door applications.
The BENINCA JM.4ESA uses a 24 Vdc motor powered from a 230 Vac supply and is designed for intensive use. Its integrated encoder provides accurate monitoring of door movement, while the STC intelligent power control system manages motor torque according to the position and actual requirements of the door.
The integrated CP.J4ESA control unit features an LCD display and a 433.92 MHz radio receiver capable of storing up to 64 transmitters. It supports Advanced Rolling Code, Rolling Code and Fixed Code radio encoding.
The JM.4ESA also features an anti-crushing system with amperometric obstacle detection, adjustable slowdowns, energy-saving electronics and optional battery operation. With IP40 protection and an operating temperature range from -20°C to +50°C, it is suitable for professional sectional door automation throughout the UAE.
BENINCA JM.4ESA Features
- Suitable for sectional doors up to 22 m²
- Maximum thrust of 1200 N
- 24 Vdc garage and sectional door motor
- 230 Vac 50–60 Hz power supply
- Designed for commercial applications
- Designed for intensive use
- Opening speed of 8.9 m/min
- Integrated CP.J4ESA electronic control unit
- Integrated LCD programming display
- Integrated encoder for precise door movement
- Electronic limit switch with encoder
- STC intelligent torque management system
- Anti-crushing obstacle detection system
- Integrated 433.92 MHz radio receiver
- Memory for up to 64 transmitters
- Advanced Rolling Code, Rolling Code and Fixed Code support
- Integrated ESA energy-saving system
- Adjustable slowdowns
- Soft Start function
- Optional battery backup support
- IP40 protection rating
BENINCA JM.4ESA Kit Includes
- 1 x BENINCA JM.4ESA Garage Door Motor
- 1 x Integrated CP.J4ESA Control Unit
- 1 x Integrated 433.92 MHz Radio Receiver
- BENINCA Remote Control
- Door Connection Arm and Installation Accessories
Applications
- Commercial sectional garage doors
- Large garage doors
- Commercial property garages
- Residential building garage entrances
- Sectional doors up to 22 m²
- High-frequency garage door applications
BENINCA JM.4ESA Technical Specifications
| Brand | BENINCA |
| Model | JM.4ESA |
| Product Type | Sectional Garage Door Opener |
| Application | Commercial |
| Maximum Door Area | 22 m² |
| Power Supply | 230 Vac, 50–60 Hz |
| Motor Supply | 24 Vdc |
| Maximum Absorbed Current | 1.5 A |
| Thrust | 1200 N |
| Opening Speed | 8.9 m/min |
| Duty Cycle | Intensive Use |
| Protection Rating | IP40 |
| Control Unit | Integrated CP.J4ESA |
| Radio Receiver | Integrated 433.92 MHz Receiver |
| Remote Memory | Up to 64 Transmitters |
| Encoder | Yes |
| Limit Switch | Electronic with Encoder |
| Obstacle Detection | Amperometric + Encoder |
| Operating Temperature | -20°C to +50°C |
| Motor Weight | 6.6 KG |
BENINCA JM.4ESA Garage Door Opener UAE
We supply original BENINCA JM.4ESA garage door openers in UAE together with BENINCA remote controls, photocell sensors and genuine garage door automation spare parts.
BENINCA garage door opener supply, professional installation and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
