BENINCA HEADY Swing Gate Control Board UAE
Price 899 AEDIn Stock

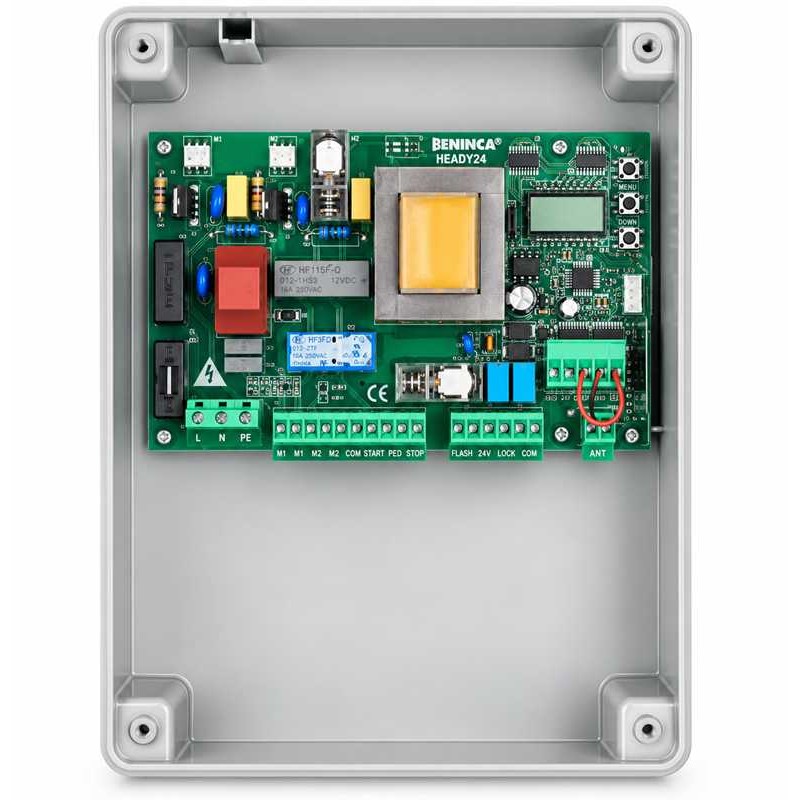

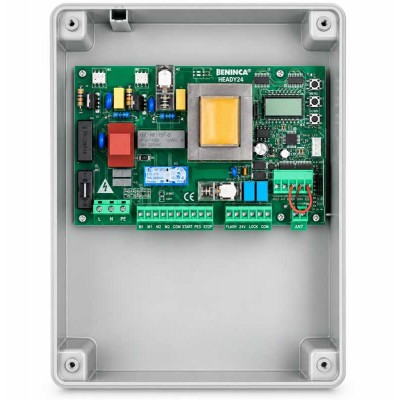

Original BENINCA HEADY 230V Swing Gate Control Board
The BENINCA HEADY Control Board is an original 230V electronic control unit designed to manage one or two swing gate actuators. It provides reliable motor control, remote operation, safety accessory management and programming for compatible BENINCA swing gate automation systems.
The HEADY control unit operates from a 230 Vac 50/60 Hz power supply and can control two 230V motors with a maximum output of 500 W + 500 W. It is suitable for residential and commercial swing gate automation.
An integrated LCD display provides convenient access to programming and operating parameters. The built-in 433.92 MHz radio receiver stores up to 64 transmitters and supports Advanced Rolling Code, Rolling Code and Fixed Code encoding systems.
The controller provides separate electronic torque and operating-time adjustment for each motor, fixed slow-downs, pedestrian opening, photocell safety inputs, electric lock output and maintenance management functions.
BENINCA HEADY Control Board Features
- Original BENINCA swing gate control unit
- Controls 1 or 2 swing gate actuators
- 230 Vac control unit power supply
- 230 Vac motor outputs up to 500 W + 500 W
- Integrated LCD programming display
- Integrated 433.92 MHz radio receiver
- Stores up to 64 transmitter codes
- Advanced Rolling Code support
- Rolling Code support
- Fixed Code support
- Automatic operating logic
- Semi-automatic operating logic
- Step-by-step command input
- Pedestrian opening input
- Stop command input
- Separate photocell safety inputs
- 230 Vac electric lock / service light output
- Gate-open indicator output
- Second radio channel output
- Photocell testing output
- Flashing light output
- Separate electronic torque adjustment for each motor
- Separate operating-time adjustment for each motor
- Fixed slow-downs
- Programming access password
- Maintenance warning function
- Removable terminal boards
Applications
- BENINCA swing gate motors
- Residential automatic swing gates
- Villa entrance gates
- Commercial swing gate systems
- Double-leaf swing gates
- Single-leaf swing gates
- Gate control board replacement
- Gate automation repair and maintenance
BENINCA HEADY Technical Specifications
| Brand | BENINCA |
| Model | HEADY |
| Product Type | Swing Gate Motor Control Unit |
| Application | 1 or 2 Swing Gate Actuators |
| Control Unit Power Supply | 230 Vac – 50/60 Hz |
| Motor Power Supply | 230 Vac / 500 W + 500 W |
| Programming Display | Integrated LCD |
| Radio Receiver | Integrated |
| Radio Frequency | 433.92 MHz |
| Remote Memory | 64 Transmitters |
| Radio Encoding | Advanced Rolling Code / Rolling Code / Fixed Code |
| Operating Logic | Automatic / Semi-Automatic |
| Step-by-Step Input | Yes |
| Pedestrian Input | Yes |
| Stop Input | Yes |
| Photocell Inputs | Separate Opening/Closing & Closing Inputs |
| Electric Lock Output | 230 Vac |
| Torque Adjustment | Separate Electronic Adjustment for Each Motor |
| Operating Time Adjustment | Separate for Each Motor |
| Slow-Down | Fixed |
| Programming Password | Yes |
| Maintenance Warning | Yes |
| Terminal Boards | Removable |
BENINCA HEADY Control Board UAE
We supply original BENINCA HEADY control boards in UAE for compatible BENINCA swing gate automation systems. The HEADY controller is suitable for original control board replacement, gate automation repairs and professional installations.
BENINCA control board supply and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
