BENINCA BRAINY Swing Gate Control Board UAE
Price 900 AEDIn Stock

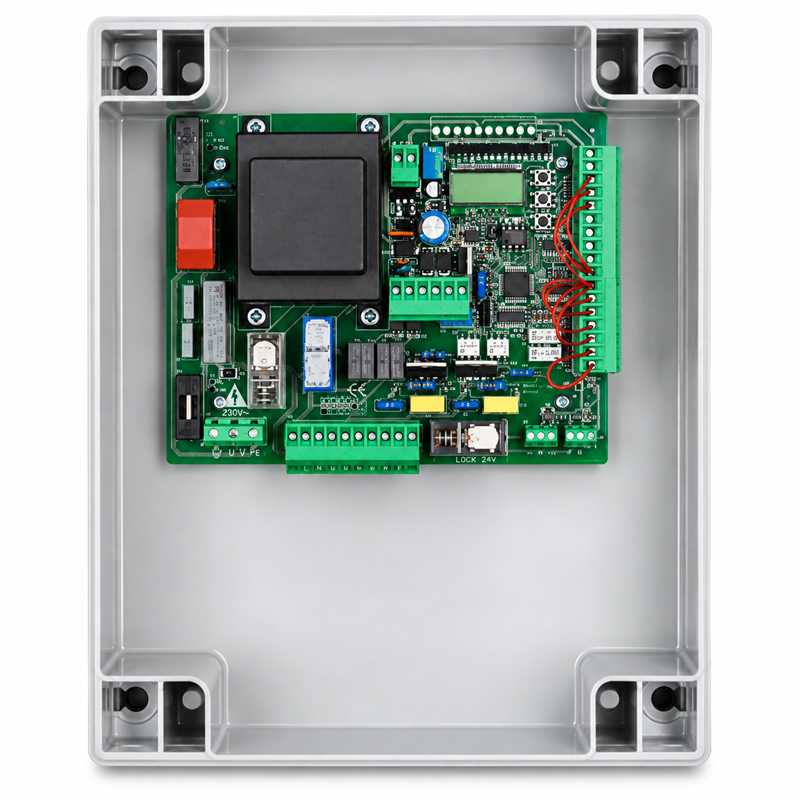

Original BENINCA BRAINY 230V Gate Motor Control Board
The BENINCA BRAINY Control Board is an original 230V electronic control unit designed for professional gate automation systems. It can manage one or two 230V actuators and is suitable for swing gates, opposed sliding gates, hydraulic operators and industrial folding doors.
The BRAINY control unit operates from a 230 Vac 50/60 Hz power supply and supports two motors with a maximum output of 600 W + 600 W. An integrated LCD display provides convenient access to programming, operating parameters and system configuration.
An integrated 433.92 MHz radio receiver stores up to 64 transmitters and supports BENINCA Advanced Rolling Code, Rolling Code and Fixed Code radio encoding systems.
The controller provides advanced automation functions including encoder-based obstacle detection, separate electronic torque adjustment for each motor, adjustable slow-downs, automatic parameter setup, maintenance warning and password-protected programming.
BENINCA BRAINY Control Board Features
- Original BENINCA gate automation control unit
- Controls 1 or 2 gate actuators
- 230 Vac control unit power supply
- 230 Vac motor outputs up to 600 W + 600 W
- Integrated LCD programming display
- Integrated 433.92 MHz radio receiver
- Stores up to 64 transmitter codes
- Advanced Rolling Code support
- Rolling Code support
- Fixed Code support
- Encoder input for obstacle detection
- Separate limit switch inputs for each motor
- Automatic operating logic
- Semi-automatic operating logic
- Deadman operating logic
- Open, close and pedestrian inputs
- Step-by-step and stop inputs
- Separate photocell safety inputs
- N.C. or 8K2 sensitive edge input
- Electric lock output
- Flashing light output
- Automatic operating parameter setup with encoder motors
- Separate electronic torque adjustment for each motor
- Adjustable slow-downs
- Programming access password
- Maintenance warning function
- Removable terminal boards
Compatible Gate Automation
- BENINCA 230V swing gate motors
- BENINCA BILL series swing gate motors
- BENINCA BOB series swing gate motors
- Compatible opposed sliding gate motors
- Compatible hydraulic gate operators
- Compatible industrial folding door automation
Applications
- Automatic swing gates
- Opposed automatic sliding gates
- Hydraulic gate automation
- Industrial folding doors
- Residential gate automation
- Villa entrance gates
- Commercial gate systems
- Industrial access automation
- Gate control board replacement
- Gate automation repair and maintenance
BENINCA BRAINY Technical Specifications
| Brand | BENINCA |
| Model | BRAINY |
| Product Type | Gate Motor Control Unit |
| Application | 1 or 2 Gate Actuators |
| Control Unit Power Supply | 230 Vac – 50/60 Hz |
| Motor Power Supply | 230 Vac / 600 W + 600 W |
| Programming Display | Integrated LCD |
| Radio Receiver | Integrated |
| Radio Frequency | 433.92 MHz |
| Remote Memory | 64 Transmitters |
| Radio Encoding | Advanced Rolling Code / Rolling Code / Fixed Code |
| Encoder Input | Yes |
| Obstacle Detection | Yes, with Encoder |
| Limit Switch Inputs | Separate for Each Motor |
| Operating Logic | Automatic / Semi-Automatic / Deadman |
| Automatic Setup | Yes, with Encoder-Equipped Motors |
| Torque Adjustment | Separate Electronic Adjustment for Each Motor |
| Slow-Down | Adjustable |
| Safety Edge Input | N.C. / 8K2 |
| Photocell Inputs | Separate Opening/Closing & Closing Inputs |
| Programming Password | Yes |
| Maintenance Warning | Yes |
BENINCA BRAINY Control Board UAE
We supply original BENINCA BRAINY control boards in UAE for compatible swing gates and other BENINCA 230V gate automation systems. The BRAINY controller is suitable for original board replacement, automation repairs and professional gate installations.
BENINCA control board supply and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
