BENINCA BOB50M Swing Gate Opener Kit UAE

Automatic Swing Gate Automation System for Gates up to 5.0m Per Leaf

The BENINCA BOB50M Swing Gate Opener is a premium Italian automation solution designed for swing gates with leaves up to 5.0 meters long. Built with a powerful 230Vac electromechanical geared motor, the BOB50M provides smooth, reliable and quiet gate operation for residential, villa and light commercial applications throughout the UAE.

The irreversible motor design improves security while the heavy-duty rolled ball screw mechanism ensures efficient power transfer and long-lasting performance. Adjustable mechanical stops for opening and closing simplify installation and provide accurate gate positioning without requiring additional external gate stops.

Engineered for demanding environments, the BENINCA BOB50M combines Italian manufacturing quality with durable construction to deliver dependable operation under UAE weather conditions including heat, humidity and dust exposure.

The convenient manual release system positioned on the top of the motor allows quick access during power failures, ensuring safe and easy operation whenever required.

BENINCA BOB50M Key Features

• Suitable for swing gates up to 5.0m per leaf
• 230Vac electromechanical geared motor
• Reliable and quiet operation
• Adjustable opening and closing mechanical stops
• Heavy-duty rolled ball screw Ø20 mm
• Easy-access manual release system
• Ideal for large residential swing gates
• Smooth and controlled gate movement
• Italian engineered automation technology
• Complete installation kit included

BENINCA BOB50M Technical Specifications

• Model: BOB50M
• Brand: BENINCA
• Device Type: Swing Gate Opener
• Power Supply: 230 Vac (50-60 Hz)
• Motor Supply: 230 Vac
• Maximum Absorbed Current: 1.4 A
• Maximum Thrust: 2500 N
• Opening Time: 26 Seconds
• Standard Stroke: 455 mm
• Maximum Stroke: 520 mm
• Duty Cycle: 30%
• Protection Rating: IP44
• Built-in Control Unit: No
• Encoder: No
• Operating Temperature: -20°C to +50°C
• Lubrication Type: Grease
• Maximum Leaf Length: 5.0 m
• Motor Weight: 11.6 KG
• Kit Weight: 19.6 KG
• Country of Origin: Made in Italy

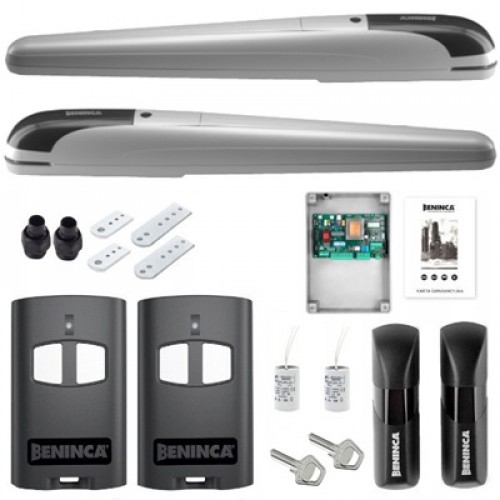

BENINCA BOB50M Kit Includes

• 2 x BENINCA BOB50M Swing Gate Motors
• 1 x HEADY Control Unit
• 1 x PUPILLA.T Adjustable Photocell Pair
• 1 x LAMPY Flashing Light with Integrated Antenna
• 2 x TO.GO Remote Controls
• 1 x Push Button
• 2 x Fixing Brackets

Recommended Applications

• Large residential swing gates
• Villa entrance gates
• Wrought iron gates
• Private property entrances
• Residential compounds
• Light commercial properties
• Automatic driveway gates
• Access control gate systems

Why Choose BENINCA BOB50M in UAE?

The BENINCA BOB50M delivers powerful thrust, smooth operation and reliable Italian engineering for larger swing gate installations. With a long stroke design, adjustable mechanical stops and durable construction, it is an ideal solution for automatic swing gate automation projects across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
