BENINCA BOB30M Swing Gate Opener Kit UAE

Automatic Swing Gate Automation System for Gates up to 3.0m Per Leaf

The BENINCA BOB30M Swing Gate Opener is a reliable Italian automation system designed for swing gates with leaves up to 3.0 meters long. Built with a powerful 230Vac electromechanical geared motor, the BOB30M delivers smooth, quiet and dependable operation for residential and light commercial gate automation projects throughout the UAE.

The irreversible motor design provides enhanced security while the rolled ball screw mechanism ensures efficient power transmission and long-term reliability. The integrated adjustable mechanical stops for both opening and closing simplify installation and eliminate the need for external mechanical gate stops in many applications.

Designed specifically for wrought iron and residential swing gates, the BENINCA BOB30M combines Italian engineering with durable construction to provide consistent daily performance under UAE climate conditions including heat, humidity and dust.

The easy-access manual release system located on the top of the motor allows quick operation during power failures, ensuring convenient access whenever required.

BENINCA BOB30M Key Features

• Suitable for swing gates up to 3.0m per leaf
• 230Vac electromechanical geared motor
• Reliable and quiet operation
• Adjustable opening and closing mechanical stops
• Heavy-duty rolled ball screw Ø20 mm
• Easy-access manual release system
• Ideal for wrought iron gates
• Smooth and controlled gate movement
• Italian engineered automation system
• Complete installation kit included

BENINCA BOB30M Technical Specifications

• Model: BOB30M
• Brand: BENINCA
• Device Type: Swing Gate Opener
• Power Supply: 230 Vac (50-60 Hz)
• Motor Supply: 230 Vac
• Maximum Absorbed Current: 1.8 A
• Maximum Thrust: 2300 N
• Opening Time: 18 Seconds
• Standard Stroke: 270 mm
• Maximum Stroke: 325 mm
• Duty Cycle: 30%
• Protection Rating: IP44
• Built-in Control Unit: No
• Encoder: No
• Operating Temperature: -20°C to +50°C
• Lubrication Type: Grease
• Maximum Leaf Length: 3.0 m
• Motor Weight: 8.5 KG
• Kit Weight: 19.6 KG
• Country of Origin: Made in Italy

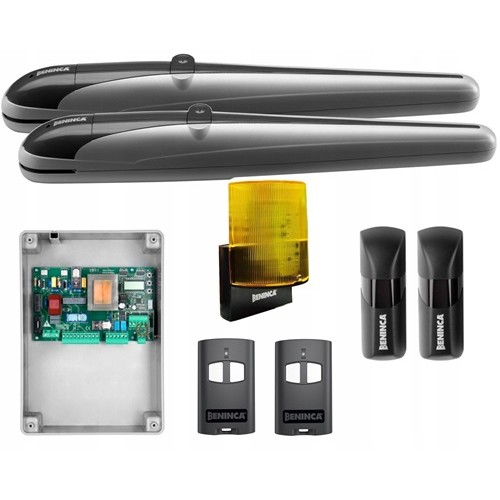

BENINCA BOB30M Kit Includes

• 2 x BENINCA BOB30M Swing Gate Motors
• 1 x HEADY Control Unit
• 1 x PUPILLA.T Adjustable Photocell Pair
• 1 x LAMPY Flashing Light with Integrated Antenna
• 2 x TO.GO Remote Controls
• 1 x Push Button
• 2 x Fixing Brackets

Recommended Applications

• Residential swing gates
• Wrought iron gates
• Villa entrance gates
• Private property entrances
• Residential compounds
• Light commercial properties
• Automatic driveway gates
• Home access control systems

Why Choose BENINCA BOB30M in UAE?

The BENINCA BOB30M offers dependable Italian engineering, smooth operation and durable performance for residential swing gate automation. With adjustable mechanical stops, powerful thrust output and easy installation, it is an excellent choice for homeowners and property managers across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
