BENINCA BILL50M Swing Gate Opener Kit UAE

Automatic Swing Gate Automation System for Gates up to 4m Per Leaf

The BENINCA BILL50M Swing Gate Opener is a premium Italian electromechanical automation solution designed for swing gates with leaves up to 4 meters wide. Engineered for residential and light commercial applications, the BILL50M delivers reliable performance, smooth operation and long-term durability for villas, private residences, residential compounds and commercial properties throughout the UAE.

Powered by a robust 230Vac geared motor, the BENINCA BILL50M provides efficient and dependable gate automation while maintaining quiet operation. Its compact dimensions and optimized installation geometry allow fast installation and seamless integration into a wide variety of gate designs.

The BILL50M is specifically designed for wrought iron gates and demanding outdoor environments. The stainless steel stem and scraper ring protection help safeguard internal components against dust, sand and harsh weather conditions, making it ideal for UAE climate conditions.

The easy-access manual release mechanism located at the top of the operator allows convenient manual gate operation during power failures or maintenance. Available in both right-hand and left-hand versions, the BILL50M provides flexible installation options for different gate configurations.

BENINCA BILL50M Key Features

• Suitable for swing gate leaves up to 4 meters
• 230Vac electromechanical geared motor
• Ideal for wrought iron swing gates
• Compact and elegant Italian design
• Quick and easy installation
• Protected stainless steel stem
• Suitable for dusty and sandy environments
• Easy-access manual release system
• Available in right and left versions
• Complete automation kit included

BENINCA BILL50M Technical Specifications

• Model: BILL50M
• Brand: BENINCA
• Device Type: Swing Gate Opener
• Power Supply: 230 Vac (50-60 Hz)
• Motor Supply: 230 Vac
• Maximum Absorbed Current: 1.1 A
• Maximum Thrust: 2800 N
• Opening Time: 21 Seconds
• Standard Stroke: 500 mm
• Maximum Stroke: 520 mm
• Duty Cycle: 30%
• Protection Rating: IP54
• Built-in Control Unit: No
• Encoder: No
• Operating Temperature: -20°C to +50°C
• Lubrication Type: Grease
• Maximum Leaf Length: 4 m
• Motor Weight: 6.9 KG
• Kit Weight: 16.2 KG
• Country of Origin: Made in Italy

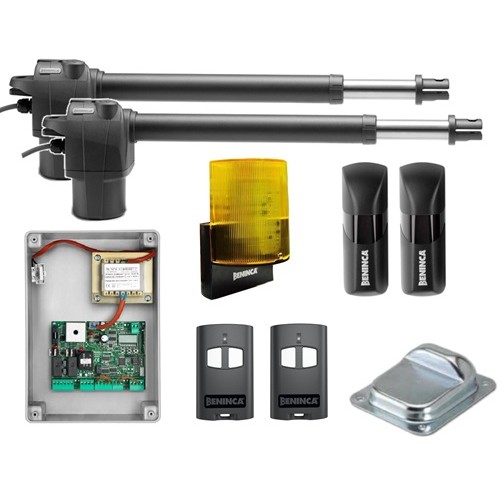

BENINCA BILL50M Kit Includes

• 2 x BENINCA BILL50M Swing Gate Motors
• 1 x HEADY 230Vac Control Unit
• 1 x LAMPI.LED 230Vac LED Flashing Light
• 1 x Pair of PUPILLA.R Fixed Photocells
• 2 x BENINCA To.Go Remote Controls
• 2 x Fixing Brackets
• 1 x Exit Push Button
• 2 x Manual Release Keys

Recommended Applications

• Villa swing gates
• Residential compounds
• Private homes
• Wrought iron gates
• Automatic driveway gates
• Large residential entrances
• Light commercial entrances
• Property access control systems

Why Choose BENINCA BILL50M in UAE?

The BENINCA BILL50M combines Italian engineering, durable construction and smooth automation performance in one reliable package. Designed specifically for swing gates up to 4 meters per leaf, it offers dependable operation, easy maintenance and long service life for residential and commercial properties across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
