BENINCA BILL30M Swing Gate Opener Kit UAE

Automatic Swing Gate Automation System for Gates up to 2.5m Per Leaf

The BENINCA BILL30M Swing Gate Opener is a premium Italian electromechanical automation solution designed for swing gates with leaves up to 2.5 meters wide. Engineered for residential and light commercial applications, the BILL30M delivers reliable performance, smooth operation and long-term durability for villas, private residences, residential compounds and commercial properties throughout the UAE.

Powered by a robust 230Vac geared motor, the BENINCA BILL30M provides efficient and dependable gate automation while maintaining quiet operation. Its compact dimensions and optimized installation geometry allow quick installation and seamless integration into a wide variety of gate designs.

The BILL30M is particularly suitable for wrought iron gates and challenging outdoor environments. The stainless steel stem and scraper ring protection help safeguard internal components against dust, sand and harsh weather conditions, making it ideal for UAE climate conditions.

The convenient manual release mechanism is easily accessible from above, allowing quick gate operation during power failures or maintenance. Available in both right-hand and left-hand versions, the BILL30M provides flexible installation options for different gate configurations.

BENINCA BILL30M Key Features

• Suitable for swing gate leaves up to 2.5 meters
• 230Vac electromechanical geared motor
• Ideal for wrought iron gates
• Compact and elegant Italian design
• Fast and easy installation
• Protected stainless steel stem
• Suitable for dusty and sandy environments
• Easy-access manual release system
• Available in right and left versions
• Complete automation kit included

BENINCA BILL30M Technical Specifications

• Model: BILL30M
• Brand: BENINCA
• Device Type: Swing Gate Opener
• Power Supply: 230 Vac (50-60 Hz)
• Motor Supply: 230 Vac
• Maximum Absorbed Current: 1.1 A
• Maximum Thrust: 2800 N
• Opening Time: 16 Seconds
• Standard Stroke: 300 mm
• Maximum Stroke: 320 mm
• Duty Cycle: 30%
• Protection Rating: IP54
• Built-in Control Unit: No
• Operating Temperature: -20°C to +50°C
• Lubrication Type: Grease
• Maximum Leaf Length: 2.5 m
• Motor Weight: 6.1 KG
• Kit Weight: 14.6 KG
• Country of Origin: Made in Italy

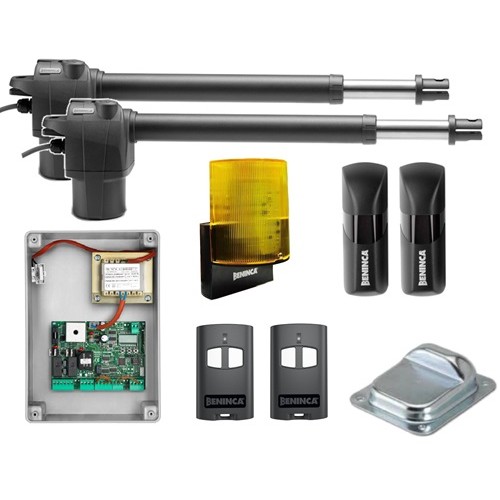

BENINCA BILL30M Kit Includes

• 2 x BENINCA BILL30M Swing Gate Motors
• 1 x HEADY 230Vac Control Unit
• 1 x LAMPI.LED 230Vac LED Flashing Light
• 1 x Pair of PUPILLA.R Fixed Photocells
• 2 x BENINCA To.Go Remote Controls
• 2 x Fixing Brackets
• 1 x Exit Push Button
• 2 x Manual Release Keys

Recommended Applications

• Villa swing gates
• Residential compounds
• Private homes
• Wrought iron gates
• Automatic driveway gates
• Gated communities
• Light commercial entrances
• Property access control systems

Why Choose BENINCA BILL30M in UAE?

The BENINCA BILL30M combines Italian engineering, durable construction and smooth automation performance in one reliable package. Designed specifically for swing gates up to 2.5 meters per leaf, it offers dependable operation, easy maintenance and long service life for residential and commercial properties across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
