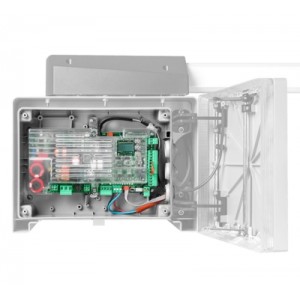

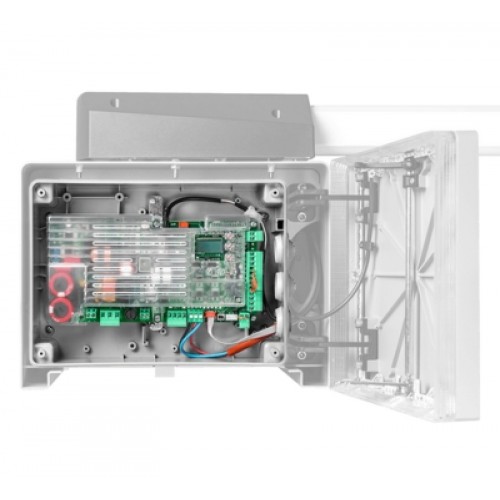

BENINCA CP DIVA Control Board in UAE

BENINCA CP DIVA Gate Barrier Control Board:

TECHNICAL DATA:

• Power supply 115 Vac / 230 Vac (50-60 Hz)
• Motor supply 24 Vdc BRUSHLESS 3PH
• Max absorbed current 3 / 1.5 A
• Opening time 0.9” (slowdowns excluded)
• Duty cycle continuous use
• Protection level IP44 (control unit IP54)
• Built-in control unit
• Integrated receiver
• Encoder
• Operating temperature -20°C /+50°C
• Lubrication OIL
• Passage width 3.0 m
• Weight 49 kg
• CP.DIVA

• APPLICATION
• 1 brushless road barrier DIVA range
• 115 or 230 Vac (selectable) 50/60Hz

• MOTORS POWER SUPPLY
• 24 Vdc / 11 A three-phase brushless
• Integrated LCD Display,

• Integrated 433.92 MHz 512-code radio receiver with ARC coding,
• Removable terminal blocks,
• Automatic, semi-automatic and deadman logic,
