BENINCA CP BULL-RI Control Board UAE
Price 1,300 AEDIn Stock

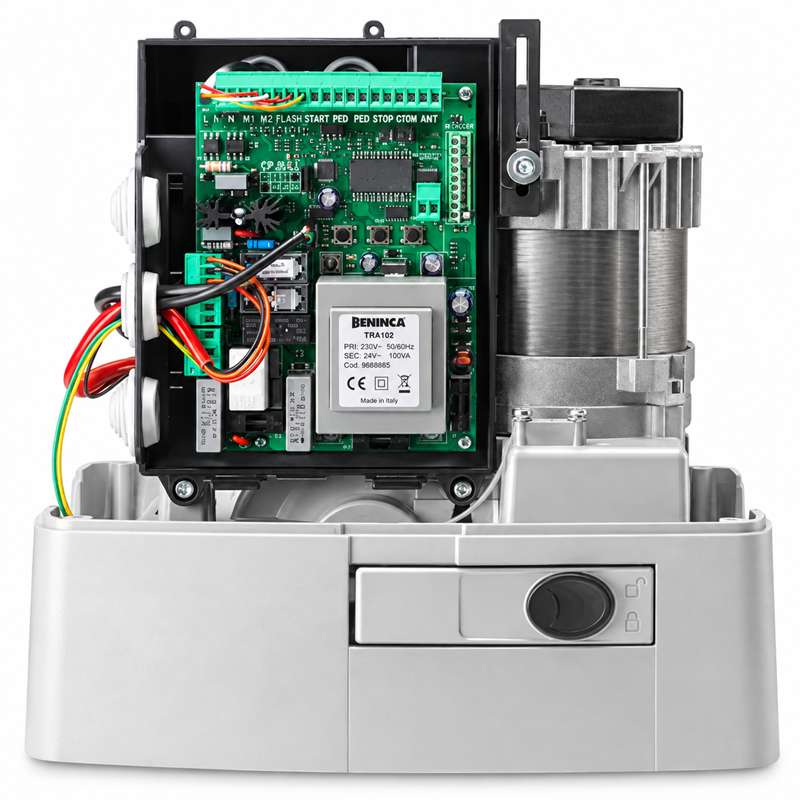

Original BENINCA CP BULL-RI Sliding Gate Control Board
The BENINCA CP BULL-RI Control Board is an original electronic control unit designed for compatible BENINCA BULL series sliding gate motors. It provides advanced control, programming and safety management for residential, commercial and industrial sliding gate automation.
The CP BULL-RI is designed for BENINCA BULL10M, BULL15M and BULL20M sliding gate operators. It operates with a 230V power supply and can manage a 230V motor with power up to 1000W.
An integrated LCD display provides convenient access to programming and operating parameters. The built-in 433.92 MHz radio receiver stores up to 64 transmitters and supports Advanced Rolling Code, Rolling Code and Fixed Code radio encoding systems.
The controller also provides encoder-based obstacle detection, electronic motor torque adjustment, adjustable slow-downs and electronic braking for precise stopping, making it suitable for powerful and heavy-duty BENINCA sliding gate operators.
BENINCA CP BULL-RI Features
- Original BENINCA control board
- Designed for BENINCA BULL series sliding gate motors
- Integrated LCD programming display
- 230 Vac control unit power supply
- 230 Vac / 1000 W motor output
- Integrated 433.92 MHz radio receiver
- Stores up to 64 transmitter codes
- Advanced Rolling Code support
- Rolling Code support
- Fixed Code support
- Encoder input for obstacle detection
- Motor limit switch inputs
- Automatic operating logic
- Semi-automatic operating logic
- Deadman operating logic
- Automatic operating parameter setup
- Electronic motor torque adjustment
- Adjustable slow-down system
- Electronic braking for precise gate stopping
- Programming access password
- Maintenance warning function
- Removable terminal boards
Compatible BENINCA Gate Motors
- BENINCA BULL10M Sliding Gate Motor
- BENINCA BULL15M Sliding Gate Motor
- BENINCA BULL20M Sliding Gate Motor
Control Inputs & Safety Functions
- Open command input
- Close command input
- Pedestrian opening input
- Step-by-step command input
- Stop command input
- Motor limit switch inputs
- Encoder input for obstacle detection
- PHOT O programmable photocell input
- PHOT C photocell input
- N.C. or 8K2 sensitive safety edge input
- Photocell testing output
- Flashing light output
- Configurable gate-open indicator, service light or second radio channel output
BENINCA CP BULL-RI Technical Specifications
| Brand | BENINCA |
| Model | CP.BULL-RI |
| Product Type | Sliding Gate Motor Control Board |
| Application | 1 Sliding Gate Actuator |
| Compatible Series | BULL10M / BULL15M / BULL20M |
| Control Unit Power Supply | 230 Vac – 50/60 Hz |
| Motor Power Supply | 230 Vac / 1000 W |
| Programming Display | Integrated LCD |
| Radio Receiver | Integrated |
| Radio Frequency | 433.92 MHz |
| Remote Memory | 64 Transmitters |
| Radio Encoding | Advanced Rolling Code / Rolling Code / Fixed Code |
| Encoder Input | Yes |
| Obstacle Detection | Yes |
| Limit Switch Inputs | Yes |
| Electronic Torque Adjustment | Yes |
| Adjustable Slow-Down | Yes |
| Electronic Braking | Yes |
| Automatic Parameter Setup | Yes |
| Programming Password | Yes |
| Maintenance Warning | Yes |
BENINCA CP BULL-RI Control Board UAE
We supply original BENINCA CP BULL-RI control boards in UAE for BULL10M, BULL15M and BULL20M sliding gate motors. The controller is suitable for original board replacement, gate automation repairs and maintenance.
BENINCA control board supply and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
