BENINCA CORE Control Board UAE
Price 800 AEDIn Stock

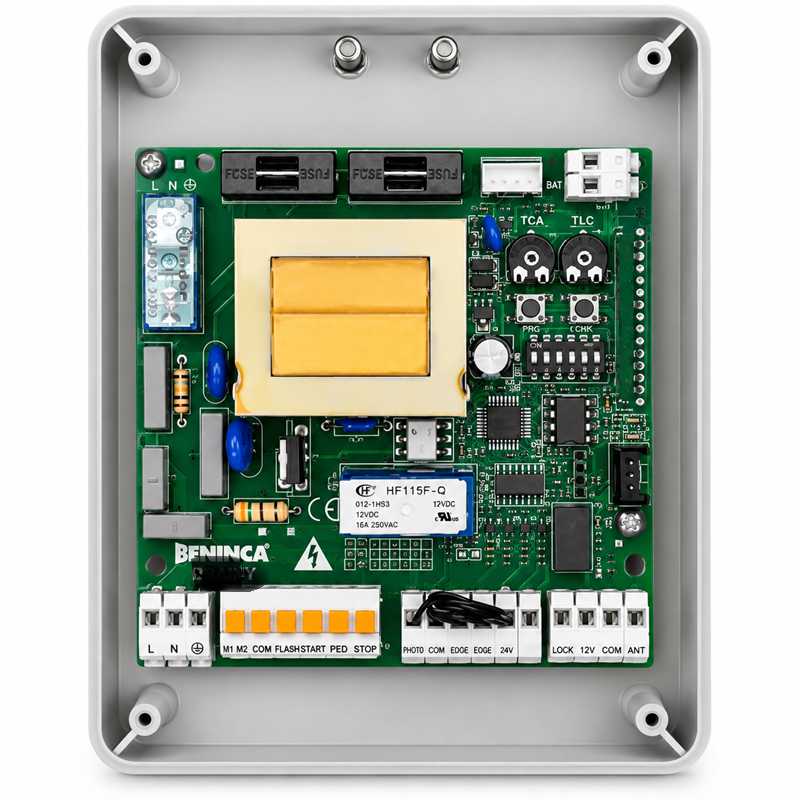

Original BENINCA CORE 230V Gate Motor Control Board
The BENINCA CORE Control Board is an original 230V electronic control unit designed to manage one sliding gate or one swing gate actuator. It provides motor control, safety management, remote control operation and accessory integration for compatible BENINCA gate automation systems.
The CORE control unit operates from a 230 Vac 50/60 Hz power supply and supports a 230 Vac motor with power up to 750 W. It is suitable for residential, commercial and gate automation replacement applications.
An integrated 433.92 MHz radio receiver stores up to 64 transmitter codes and supports three BENINCA radio encoding systems: Advanced Rolling Code, Rolling Code and Fixed Code.
The controller also supports an encoder input for obstacle detection, automatic setup of operating parameters, adjustable slow-downs and five levels of electronic motor torque adjustment for accurate gate operation.
BENINCA CORE Control Board Features
- Original BENINCA gate automation control unit
- Designed for one sliding or one swing gate actuator
- 230 Vac control unit power supply
- 230 Vac motor output up to 750 W
- Integrated 433.92 MHz radio receiver
- Stores up to 64 transmitter codes
- Advanced Rolling Code support
- Rolling Code support
- Fixed Code support
- Encoder input for obstacle detection
- Motor limit switch inputs
- Automatic operating logic
- Semi-automatic operating logic
- Deadman operating logic
- Automatic setup of operating parameters
- Adjustable slow-downs
- Electronic motor torque adjustment on 5 levels
- Step-by-step command input
- Stop and photocell inputs
- Flashing light output
- Gate-open indicator output
- Removable terminal boards
Applications
- BENINCA sliding gate automation
- BENINCA swing gate automation
- Residential automatic gates
- Villa entrance gates
- Commercial gate automation
- Gate control board replacement
- Gate automation repair and maintenance
BENINCA CORE Technical Specifications
| Brand | BENINCA |
| Model | CORE |
| Product Type | Gate Motor Control Unit |
| Application | 1 Sliding Gate or 1 Swing Gate Actuator |
| Control Unit Power Supply | 230 Vac – 50/60 Hz |
| Motor Power Supply | 230 Vac / 750 W |
| Radio Receiver | Integrated |
| Radio Frequency | 433.92 MHz |
| Remote Memory | 64 Transmitters |
| Radio Encoding | Advanced Rolling Code / Rolling Code / Fixed Code |
| Encoder Input | Yes – MAG.E |
| Obstacle Detection | Yes, with Encoder |
| Limit Switch Inputs | Yes |
| Operating Logic | Automatic / Semi-Automatic / Deadman |
| Automatic Setup | Yes |
| Slow-Down Adjustment | Adjustable |
| Torque Adjustment | Electronic – 5 Levels |
| Photocell Input | Yes |
| Flashing Light Output | Yes |
| Terminal Boards | Removable |
BENINCA CORE Control Board UAE
We supply original BENINCA CORE control boards in UAE for compatible sliding and swing gate automation systems. The CORE controller is suitable for original control board replacement, gate automation repairs and new compatible installations.
BENINCA control board supply and technical support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
