3G GSM Gate Opener Controller UAE

3G GSM Gate Opener for Automatic Gates UAE

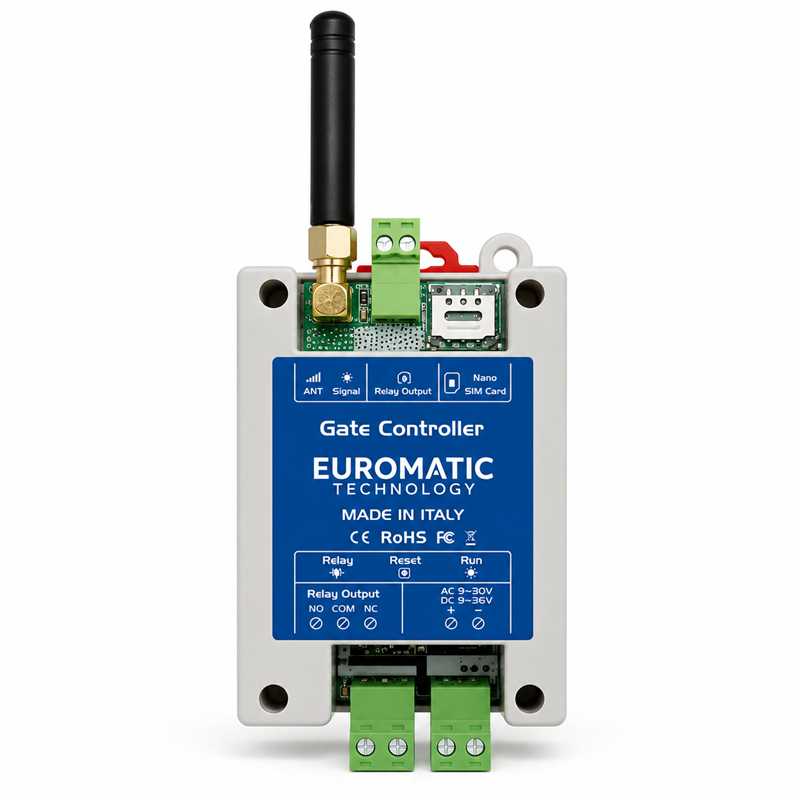

The 3G GSM Gate Opener Controller is a mobile access control solution designed to operate automatic gates, garage doors, rolling shutters and compatible access control systems using an authorized mobile phone call.

A Nano SIM card is installed inside the GSM controller and authorized telephone numbers are stored in its memory. When an approved user calls the SIM card number, the controller verifies the caller ID and activates its relay output to send an opening command to the connected gate automation system.

The controller supports up to 200 authorized phone numbers, making it suitable for villas, residential buildings, offices, warehouses, factories and commercial properties. Users can be added or removed remotely using supported SMS programming commands.

Unlike a conventional gate remote control, the GSM controller does not depend on short-range radio transmission. Users can operate the connected gate from locations with suitable mobile network coverage, making it a practical access control solution for properties throughout the UAE.

3G GSM Gate Opener Features

• Open automatic gates using a mobile phone call
• Supports up to 200 authorized users
• GSM / 3G mobile network operation
• GSM Quad Band 850 / 900 / 1800 / 1900 MHz
• Nano SIM card support
• Caller ID authorization
• Add or remove users using SMS commands
• No conventional gate remote required
• No Wi-Fi connection required
• DC 9V–36V wide voltage input
• Normally Open (NO) and Normally Closed (NC) relay contacts
• Adjustable relay activation time from 0–900 seconds
• External wired push button supported
• 50Ω SMA antenna connection
• Compact design for easy installation
• Suitable for residential and commercial access control

How the 3G GSM Gate Opener Works

• Install an active Nano SIM card inside the controller
• Program authorized mobile phone numbers
• Authorized user calls the SIM card number
• The controller verifies the incoming caller ID
• The relay activates when the number is authorized
• The connected gate control board receives the opening command
• The automatic gate opens according to its control board programming

Applications

• Automatic sliding gate motors
• Automatic swing gate motors
• Garage door openers
• Rolling shutter systems
• Automatic doors
• Access control systems
• Villa entrance gates
• Residential compounds
• Office and commercial entrances
• Factories and warehouses

3G GSM Gate Opener Technical Specifications

3G GSM Gate Opener Controller UAE

We supply 3G GSM gate opener controllers in UAE for compatible sliding gates, swing gates, garage doors, rolling shutters and access control systems. The controller provides convenient mobile phone access without requiring conventional handheld gate remotes.

GSM gate opener supply, installation and programming support are available across Dubai, Sharjah, Abu Dhabi, Ajman, Ras Al Khaimah, Fujairah, Umm Al Quwain and Al Ain.
